Mini ITX Motherboard LGA1151 Intel 8th/9th Gen DDR4

Mini ITX Motherboard LGA1151 Intel 8th/9th Gen DDR4

$115.00 USD
$115.00 USD $115.00 USD
model number

SPECIFICATIONS

application: Server/Workstation

chipset: Intel H310

chipset manufacturer: Intel

cpu type: Core I7/Core I5/Core I3/Pentium/Celeron

form factor: Mini-ITX

graphics card type: Integrated-need CPU support

hard drive interface: SATA

item condition: New

maximum ram capacity: 32 GB

memory bank: 2 DDR4 DIMM

memory channel: Double

memory type: DDR4

package: Yes

place of origin: Guangdong, China

ports: SATA,VGA ,PCI-Express X16,USB 2.0,PS2,Usb3.1,HDMI

products status: New

socket type: LGA 1151

with cpu: No

Company Profile
Product Paramenters
Product model
MINl-TX Embedded Motherboard
CPU
Intel 8th and 9th Generation CoreTM i3/i5/i7 (with low-power CPU),Pentium, Celeron CPU, LGA1151
Chipset
Intel H310, TDP 6W
Memory
2 S0-DIMM, DDR4-2400/2666, up to 32 GB
BIOS
AMI EF BIOS
super l/o
Fintek F81866AD
Ethernet
2 LAN (1xintel1225-V/i226-V+1xintel 1219-V)
Graphic control
intel HD Graphics
Display interface
1 HDMl: HDMl supports a maximum resolution of 4096* 2160@24HZ
1 VGA: VGA supports a maximum resolution of 1920x1200@60HZ
1 LVDS/eDP:
The maximum resolution supported by LvDS is 1920x1200@60Hz Supports single, dual 18bits, and 24bits
EDP supports a maximum resolution of 4096* 2160@60Hz
Storage interface
Support independent 3D graphics
audio frequency
Realtek ALC662 HD Audio
Line out/MlC in (rear 10 panel, 2-in-1 quad core)
Built in Line out2/Line in audio pins
1x4Pin 2.5W amplifier function
GPIO
8-bit programmable digital l/0 pin
Expansion interface
2 M.2 interfaces (1 supports NVMe protocol M.2 hard drive, 1 supports WiFl/BT funcion)
1 standard PClE x16 slot (clamp type crossbar)
Fan interface
1x 4Pin CPU fan interface, 1x 4Pin SYs fan interface
watchdog
255 level timer, resettable
Power type
1x2 green phoenix terminal+12V DC input
temperature
Working temperature: -10 °C~60 °C
Storage temperature: -40°C~80 °C
humidity
5%~95% relative humidity,no condensation

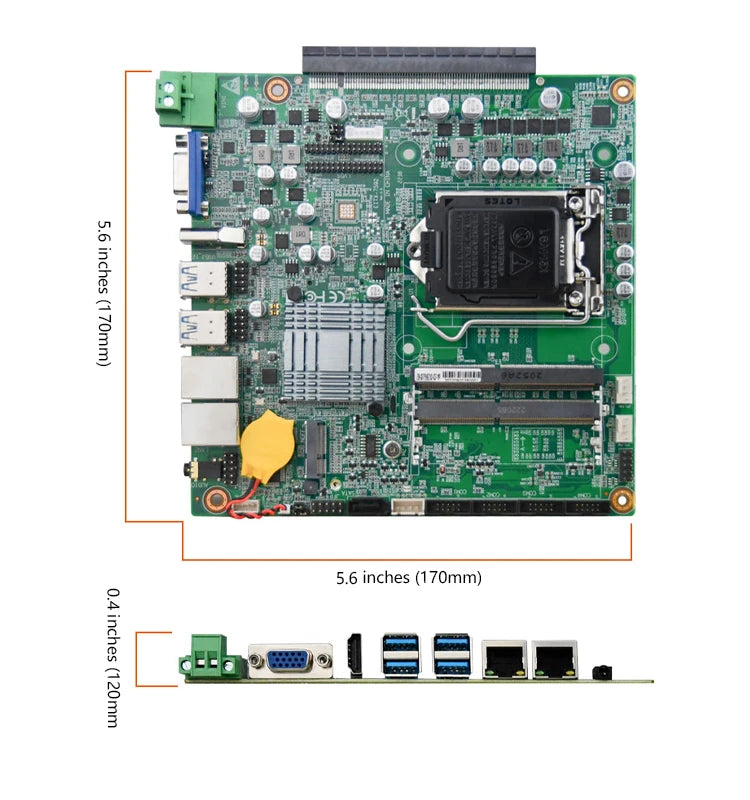

size
170mmx170mm
